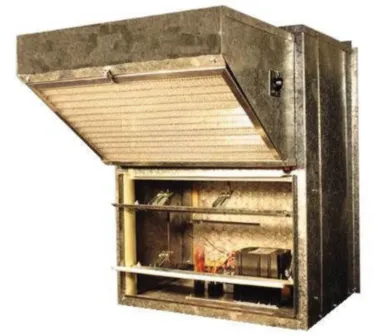

McDaniel Metals DHZECNJPGCHM Horizontal Jade Economizer

Economizers are designed to provide “free” air conditioning when outside conditions are appropriate. When the outside air is cool and dry enough, the economizer automatically opens to introduce the cool air to the interior space, thereby eliminating the need to run the air conditioning compressor.

If the outside air becomes too warm or humid, the economizer automatically closes the fresh air damper and the compressor engages to begin cooling the space mechanically.

If a two stage thermostat is used it is possible to use a combination of economizer and mechanical cooling to conditi on the space.

The economizer can also be set to allow a minimum amount of fresh air to enter the space when the equipment’s indoor blower is operating.

Economizers are valuable tools to enhance indoor air quality, save energy and prolong the life of the air conditioning equipment.

Features:

• Fully modulating
• Up to 100% fresh air
• Honeywell Jade economizer control
• Single adjustable enthalpy convertible two dual enthalpy
• Adjustable minimum fresh air
• Fits Daikin M series medium chassis A/C and heat pump, H series all chassis, all fuels
• Heat Pump requires Goodman Part IRKT-01
• Integrated filter rack
• Weighs 65 pounds
• Hard wiring required for single phase units

Compatibility:

• Goodman GPH1436H41 Packaged Heat Pumps
• Goodman GPH1442H41 Packaged Heat Pumps
• Goodman GPH1448H41 Packaged Heat Pumps
• Goodman GPH1460H41 Packaged Heat Pumps
• Goodman GPH1624M41 Packaged Heat Pumps
• Goodman GPH1630M41 Packaged Heat Pumps
• Goodman GPH1636M41 Packaged Heat Pumps
• Goodman GPC14H48H41 Packaged Air Conditioners
• Goodman GPC14H60H41 Packaged Air Conditioners
• DAIKIN/GOODMAN GPG/C/H M SERIES MEDIUM CHASSIS, GPC/H H SERIES ALL SIZES AND ALL FUELS

Specifications:
