This Cabin Energy™ pre-wired pump kit is easy to install & designed to provide 12v power to our line of  which are used for camps, cabins, RV's, and boats to supply water for washing dishes, showers, and more.

This kit includes:

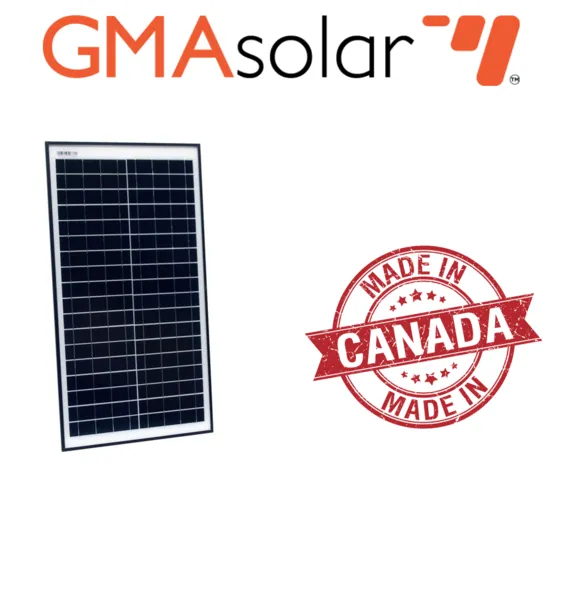

• 30 Watt Solar Panel with waterproof MC4 connections
• Solar to Controller wire 10' pair with waterproof MC4 connections

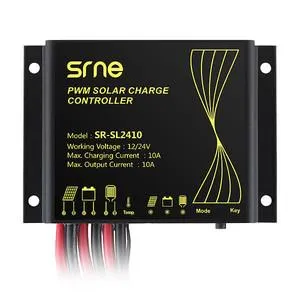

• 10 Amp PWM waterproof charge controller
• Controller to Battery wire pair 5' with fuse

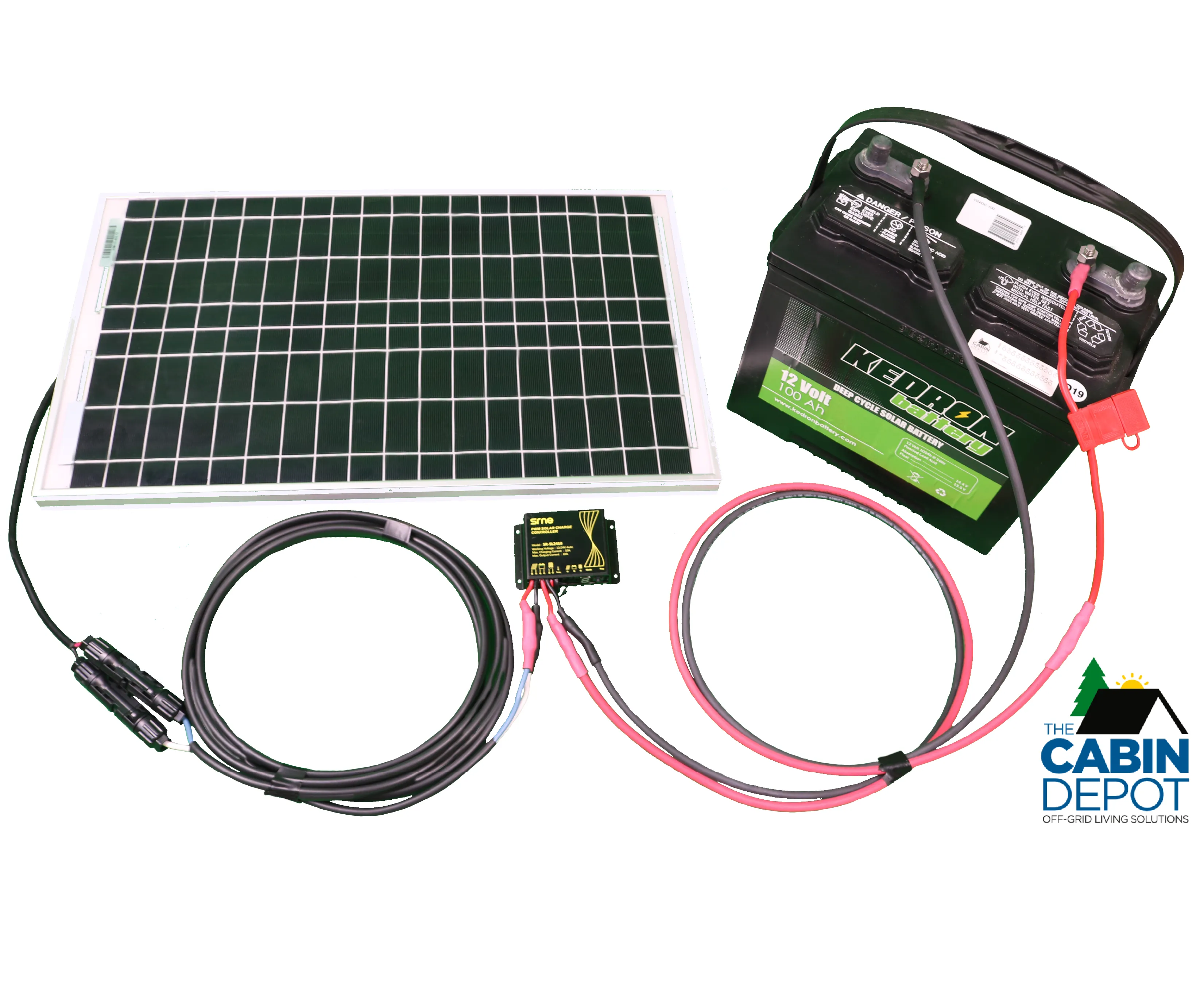

This kit comes pre-wired to the controller for your convenience: after you mount your solar panel, just click together the solar panel wires and connect to your battery - that's it! The wires are clearly marked ( ) and (-) for connection to the battery of your choice.

Recommended battery: Deep Cycle, 80Ah to 130Ah max such as our battery. (Shown in picture, but NOT included in the kit).

Note: Batteries can be very expensive to ship, so usually these are sourced locally. However, if you'd like us to quote your system including a battery, just let us know!

Upgrade options:

• 100 watt panel: if you have limited sunlight available at your location, or are using your pump for more than 1 hour continuously per day.
• Z-mount bracket set (4) for mounting your 30w or 100w panel to a flat surface.
• 16" Angle bracket set for mounting your panel at an angle to a variety of surfaces. This includes 2 x 16" angle brackets and 1 x L brackets.
• Need a pump? Try our with strainer included!
